Meteor

"These are a few of my favourite things"

My aim was to make something new from some things old. Not just to do what has been done before but to take elements of some of my favourite designs and combine them into something interesting, exciting and new.

I've combined elements from various 1950s solid body guitars with the aim of retaining a cohesive and functional design. It had to look right and it has to sound right.

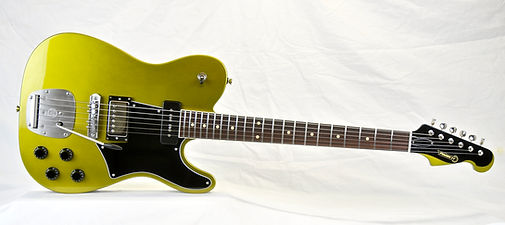

The Meteor is the single cutaway brother of the Rocket III.  Equal parts Tele and LP Special.


The Meteor uses a full width tenon that provides massive contact area which gives unbeatable rigidity and vibration transfer. Both critical elements in making an instrument that both sounds and feels “right”.



Available with either an adjustable wraparound bridge or cut down 3 saddle bridge and with a range of pickup and aesthetic options. (please check the spec list for details).

Meteor – Std Specifications

Construction

Set neck, full width, max length tenon

Scale length:…….......….24.625” or 25.5"

Body

Material:………….......…..Premium grade 1 piece 1.75″ Mahogany (options below)

Contours:………............ Uncontoured "slab" body

Neck

Material:……………..........One piece quartersawn Mahogany (options below)

Fretboard:………….…......First grade Rosewood (Bound or unbound)

Binding:…………….......….Single ply “Royalite”

Inlays:……………….…........Clay Dot inlays (options below)

Fretboard Radius:……..12″

Nut Width:…………….......1.693″ (43mm)

Trussrod:…………….........Vintage style 3/16 single acting rod.

Nut:…………………........…..Bone or "Tusq" XL

Frets:………………….........Jescar Nickel silver or Stainless Steel

Headstock angle:….....10 degrees

Electronics

Pickups:…………........……Humbucker or P90 (options below)

Switching:………….....…. 3 way

Controls:…………….....… T style plate with single volume and tone (options below)

Hardware

Finish:…………............…..Nickel or chrome

Bridge:…………...........…..Tonepros adjustable wraparound (options below)

Tuners:………...........…….Gotoh “Kluson” type

Finish

Type:……………...........…..Nitrocellulose lacquer

Colour:………...............….Choice of vintage colours

Accessories

Case:…….....................…Hiscox “Liteflite” hardcase



Options

Body material:….........Honduran or African Mahogany / Black Afara / Spanish Cedar / Alder / Swamp Ash wood

Neck material:….........Honduran or African Mahogany / Maple

Vibrato bridge:…........."Mannmade" Classic 2 post vibrato or  Gotoh 510 2 post

Hardtail bridge:..…......Cutdown "Tele" 3 saddle bridge

Pickups:…………............Any combination of std Humbucker or P90 pickups

Controls:………..….........Rear mounted 2 vol/2 tone + 3 way toggle switch (2 pickup guitars only)

Fretwire:………..….........Choice of Jescar 47095, 55090, 51100, 57110 wire. (Available in 18%Nickel silver or Stainless steel)

Fingerboard:................Unbound or single bound with vintage spec “Royalite” ABS.

Inlays:…………….....….... Vintage spec Cellulose Nitrate “Trap” inlays (only available with bound fingerboard)

Headstock:……....…......With or without "step"
